12V Heater for RV: Diesel and Gasoline Hydronic Kits
Posted by [email protected] on 12th Jun 2026
12V Heater for RV: Diesel and Gasoline Hydronic Kits
Searching for a 12V heater for RV use can get confusing quickly. Some heaters are made only for hot air. Some are direct electric heaters that pull power from the battery. Others are fuel-powered systems that use 12V power for controls, pumps, and fans while diesel or gasoline provides the heat.
Our Espar/Eberspächer Hydronic S3 RV heater kits fall into that third category.
These are not small plug-in electric heaters. They are 12V fuel-powered hydronic heater kits designed to support both cabin heat and hot water in RVs, campers, motorhomes, truck campers, expedition vehicles, and off-grid builds.
We supply two main versions:
- Espar/Eberspächer Hydronic S3 D5E 12V Diesel RV Heater Kit
- Espar/Eberspächer Hydronic S3 B5E 12V Gasoline/Petrol RV Camper Kit
The diesel D5E and gasoline B5E kits work around the same heating concept. The main difference is fuel type. Choose the version that matches the fuel your vehicle or build is already designed to use.
What is a 12V hydronic RV heater kit?
A hydronic heater warms a coolant circuit instead of heating cabin air directly inside the heater body.
In an RV or camper system, that heated coolant can be circulated through a hot water plate exchanger and blower heaters. This allows one heating platform to support both domestic hot water and warm cabin air.
That is what makes these kits different from a basic 12 volt camper heater. A simple air heater is mainly for cabin heat. A Hydronic S3 RV heater kit is built for installations where hot water and cabin heating are both part of the plan.
The system is still a 12V heater in the RV sense because it uses 12V power for operation, controls, and supporting components. The heat itself comes from diesel or gasoline, depending on the kit.
Why “12 volt RV heater” does not always mean electric heat
Many people search for a 12 volt RV heater because they want a heater that works with their RV’s electrical system. But it is important to separate operating voltage from heat source.
A direct 12V electric heater uses battery power to create heat. That can draw power quickly and is usually not the best primary heat source for serious off-grid use.
A fuel-powered RV 12V heater works differently. It uses 12V power to run the system, but the actual heat comes from fuel. In the case of the Hydronic S3 kits, that fuel is diesel for the D5E version or gasoline for the B5E version.
That makes these kits better suited for RV builds where the goal is steady cabin comfort and hot water without relying only on shore power.
How these kits support cabin heat and hot water
The Hydronic S3 system heats coolant. Once warmed, that coolant can move through the heating circuit and transfer heat where the build needs it.
In a typical RV heating setup, the system can support:
- Hot water for sinks, showers, or other domestic hot water use
- Blower heaters for fan-assisted cabin heat
- Optional floor heating, depending on the system design
The easiest way to understand the system is:
The heater warms coolant. The coolant warms the water through a water plate heat exchanger. The same heating circuit can also feed blower heaters for cabin heat.
This is why a hydronic kit makes sense when the build needs more than one heat function. It is not just about adding warm air. It is about building a more complete RV heating and hot water system.
D5E diesel RV heater kit for diesel builds
The Espar/Eberspächer Hydronic S3 D5E 12V Diesel RV Heater Kit is the diesel version of this setup.
It is a strong fit for diesel-powered RVs, diesel truck campers, expedition vehicles, and van conversions where diesel is already the onboard fuel source. Mercedes-Benz Sprinter conversions are a common example, especially when the build is diesel-based.
The D5E diesel RV heater kit can be used in many diesel-based RV, camper, and specialty vehicle builds when the system is designed and installed correctly.
Use the D5E kit when the build is diesel-based and the goal is to support hot water and cabin heat from a compact hydronic platform.
B5E gasoline RV heater kit for gas-powered builds
The Espar/Eberspächer Hydronic S3 B5E 12V Gasoline/Petrol RV Camper Kit is the gasoline version of the same basic heating concept.
For US and Canadian customers, “gasoline” is the natural wording. “Petrol” appears in some manufacturer and product naming, but gasoline is the clearer term for most North American RV owners.
The B5E gasoline RV heater kit is a natural fit for gas-powered RVs and camper conversions. Common examples include Ford Transit and Ram ProMaster builds, as well as gasoline truck campers and other gas-powered RV platforms.
These are examples, not restrictions. The correct application depends on the fuel source, heating system design, installation requirements, and the overall build plan.
Use the B5E kit when the build is gasoline-based and the goal is to support hot water and cabin heat from a compact hydronic platform.
EasyStart Pro control and blower temperature control

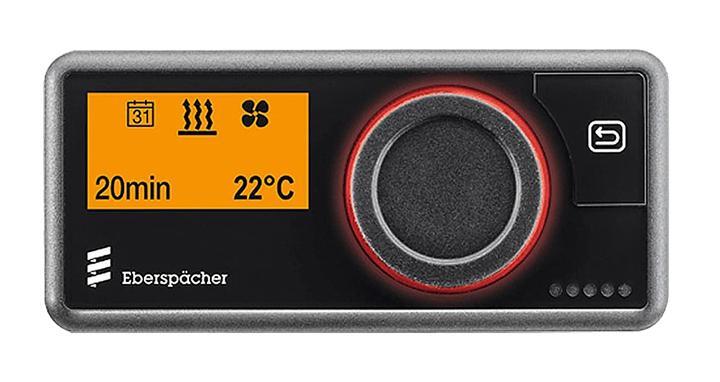

The Hydronic S3 RV heater setup uses EasyStart Pro control. The controller gives the system a clear operating point inside the vehicle and is especially useful in a more complete hydronic setup.
View the controller here:
Espar/Eberspächer EasyStart Pro Controller Timer
Cabin comfort is handled through the blower heating side of the system. With automatic blower control and an external temperature sensor, ensuring a set temperature is maintained.
The hot water side is handled separately through a water plate heat exchanger, by running hot coolant through plates that then heat the water running on the other side of them. A mixing valve can be used in the hot water circuit to help manage outlet water temperature.

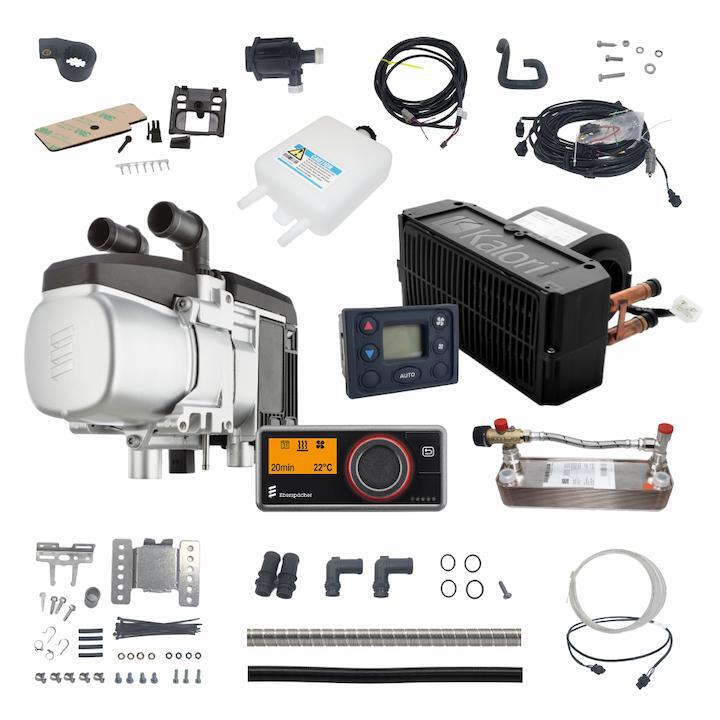

Together, the heater, coolant circuit, water plate heat exchanger, blower heaters, mixing valve, and controller create a more integrated RV heating system than a simple standalone heater.
Hot water without heating the cabin
One practical advantage of a hydronic RV heating system is that it can support hot water use even when cabin heat is not needed.
In warmer conditions, the blower heaters can be left off when only hot water is required. This allows the system to focus on producing hot water instead of adding heat to the living area.
That matters in real RV use. On a mild day, you may still want hot water for a sink or shower without heating the cabin. A hydronic setup gives the build more flexibility than an air-only heater.
Only need hot air? Choose an air heater instead
The Hydronic S3 D5E and B5E RV kits are best when you want hot water plus cabin heat. If your only goal is warm air inside the cabin, a dedicated air heater is usually the simpler and more direct choice.
For diesel vehicles, suitable air-heater options include:
- Espar/Eberspächer Airtronic S3 D2L Diesel 12V Heater Kit with EasyStart Pro Controller
- Webasto Air Top 2000 STC Diesel 12V Heater Kit with SmarTemp 3.0 BT Controller
For gasoline vehicles, suitable air-heater options include:
- Espar/Eberspächer Airtronic S3 B2L Gasoline 12V Heater Kit with EasyStart Pro Controller
- Webasto Air Top 2000 STC Gasoline 12V Heater Kit with SmarTemp 3.0 BT Controller
The choice comes down to what the build needs.
Need hot air only? Choose an air heater. Need hot water and cabin heat? Choose a Hydronic S3 RV heater kit.
What to consider before buying
Before choosing a Hydronic S3 RV heater kit, think about the whole system.
Start with fuel type. If the vehicle or build is diesel-based, the D5E diesel kit is the natural match. If the vehicle or build is gasoline-based, the B5E gasoline kit is the natural match.
Next, think about hot water. If the build includes a sink, shower, or other domestic hot water use, a hydronic system makes more sense than an air-only heater.
Then think about cabin heat. If you want fan-assisted heat from blower heaters, the Hydronic S3 system can support that through the coolant circuit. If the build only needs one direct warm-air outlet, an air heater may be simpler.
Also consider installation complexity. Hydronic heating systems involve coolant, fuel, exhaust, combustion air, electrical controls, water heating, and blower integration. Installation should follow the heater manufacturer’s instructions and the complete system design.
Is a Hydronic S3 RV heater kit right for your build?
A Hydronic S3 RV heater kit is a strong choice when your build needs more than basic warm air.
It makes sense when you want:
- A 12V fuel-powered heating system
- Hot water support
- Fan-assisted cabin heat
- A diesel or gasoline version matched to the vehicle fuel source
- A compact platform for RVs, campers, truck campers, motorhomes, expedition vehicles, and off-grid builds
It may be more system than you need if you only want to heat one small sleeping area. In that case, one of our air heater kits may be the better fit.
For a more complete 12V heater for RV use, especially where hot water and cabin heat are both part of the plan, the Espar/Eberspächer Hydronic S3 D5E and B5E kits are built for exactly that type of system.
Explore the kits here:
- Espar/Eberspächer Hydronic S3 D5E 12V Diesel RV Heater Kit
- Espar/Eberspächer Hydronic S3 B5E 12V Gasoline/Petrol RV Camper Kit
FAQs
Is a Hydronic S3 kit a 12V electric heater?
No. The D5E and B5E are 12V fuel-powered hydronic heaters. They use 12V power for operation, controls, pumps, and system components, while diesel or gasoline provides the heat.
What is the difference between the D5E and B5E kits?
The main difference is fuel type. The D5E is the diesel version. The B5E is the gasoline version. Both are Hydronic S3 12V heater kits used for coolant-based RV heating systems.
Can these kits heat both air and water?
Yes. A Hydronic S3 RV system can support hot water through a water plate exchanger and cabin heat through blower heaters.
Can I use the system for hot water only?
Yes. In warmer conditions, the blower heaters can be left off when only hot water is needed. This lets the system focus on hot water without heating the living area.
Is this better than an air heater?
It depends on what you need. If you only need hot air, choose an air heater. If you need hot water and cabin heat, a Hydronic S3 RV heater kit is the more complete option.
Can these kits be used in Sprinter, Transit, or Promaster conversions?
Yes, they may be suitable for those platforms when the fuel type and installation design match the build. Diesel D5E kits are commonly relevant for diesel Sprinter-style builds, while gasoline B5E kits are commonly relevant for gas RVs, Ford Transit builds, Ram Promaster builds, and other gasoline-powered setups. These are examples, not restrictions.
